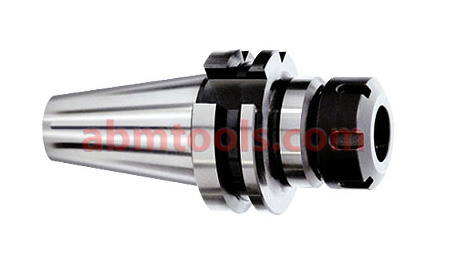

Description
• Form A & AD is without Coolant holes through flanges.
• Form B is with Coolant holes through flanges.
Dimension in mm
| Form A & AD Item Code No. | Form B Item Code No. | Type | D | D1 | L | L1 | L2 | G | G1 |
|---|---|---|---|---|---|---|---|---|---|
| ABM-IMT-7150 | ABM-IMT-7200 | SK 30 / ER 16 x 070 | 28 | 28 | 70 | 59.5 | 41.5 | M 12 | M 12 |
| ABM-IMT-7151 | ABM-IMT-7201 | SK 30 / ER 16 x 100 | 28 | 28 | 100 | 89.5 | 71.5 | M 12 | M 12 |
| ABM-IMT-7152 | ABM-IMT-7202 | SK 30 / ER 25 x 060 | 42 | 32 | 60 | 48.4 | -- | M 12 | M 12 |
| ABM-IMT-7153 | ABM-IMT-7203 | SK 30 / ER 25 x 100 | 42 | 40 | 100 | 52.4 | -- | M 12 | M 12 |
| ABM-IMT-7154 | ABM-IMT-7204 | SK 30 / ER 32 x 065 | 50 | 40 | 65 | 52.4 | -- | M 12 | M 12 |
| ABM-IMT-7155 | ABM-IMT-7205 | SK 30 / ER 32 x 100 | 50 | 40 | 100 | 87.3 | -- | M 12 | M 12 |
| ABM-IMT-7156 | ABM-IMT-7206 | SK 40 / ER 16 x 070 | 28 | 44.45 | 70 | 59.5 | 33 | M 16 | M 12 |
| ABM-IMT-7157 | ABM-IMT-7207 | SK 40 / ER 16 x 100 | 28 | 44.45 | 100 | 89.4 | 35 | M 16 | M 12 |
| ABM-IMT-7158 | ABM-IMT-7208 | SK 40 / ER 16 x 150 | 28 | 44.45 | 150 | 139.4 | 56 | M 16 | M 12 |
| ABM-IMT-7159 | ABM-IMT-7209 | SK 40 / ER 25 x 070 | 42 | 44.45 | 70 | 58 | 38 | M 16 | M 12 |
| ABM-IMT-7160 | ABM-IMT-7210 | SK 40 / ER 25 x 100 | 42 | 44.45 | 100 | 88 | 33.5 | M 16 | M 12 |
| ABM-IMT-7161 | ABM-IMT-7211 | SK 40 / ER 25 x 150 | 42 | 44.45 | 150 | 138 | 33.5 | M 16 | M 12 |
| ABM-IMT-7162 | ABM-IMT-7212 | SK 40 / ER 32 x 070 | 50 | 44.45 | 70 | 57.5 | 35.5 | M 16 | M 12 |
| ABM-IMT-7163 | ABM-IMT-7213 | SK 40 / ER 32 x 100 | 50 | 44.45 | 100 | 87 | 65.5 | M 16 | M 12 |
| ABM-IMT-7164 | ABM-IMT-7214 | SK 40 / ER 32 x 150 | 50 | 44.45 | 150 | 137.5 | 115.5 | M 16 | M 12 |
| ABM-IMT-7165 | ABM-IMT-7215 | SK 40 / ER 40 x 080 | 63 | 44.45 | 80 | 65.5 | 35 | M 16 | M 12 |
| ABM-IMT-7166 | ABM-IMT-7216 | SK 40 / ER 40 x 100 | 63 | 44.45 | 100 | 85.5 | 34.5 | M 16 | M 12 |
| ABM-IMT-7167 | ABM-IMT-7217 | SK 40 / ER 40 x 150 | 63 | 44.45 | 150 | 135.5 | 35 | M 16 | M 12 |
| ABM-IMT-7168 | ABM-IMT-7218 | SK 50 / ER 16 x 100 | 28 | 28 | 100 | 89.5 | 71.5 | M 24 | M 12 |
| ABM-IMT-7169 | ABM-IMT-7219 | SK 50 / ER 16 x 150 | 28 | 28 | 150 | 139.5 | 121.5 | M 24 | M 12 |
| ABM-IMT-7170 | ABM-IMT-7220 | SK 50 / ER 32 x 100 | 50 | 69.84 | 100 | 87.5 | 35 | M 24 | M 12 |
| ABM-IMT-7171 | ABM-IMT-7221 | SK 50 / ER 32 x 160 | 50 | 69.84 | 160 | 147.5 | 38.5 | M 24 | M 12 |
| ABM-IMT-7172 | ABM-IMT-7222 | SK 50 / ER 40 x 100 | 63 | 69.84 | 100 | 85.5 | 39 | M 24 | M 12 |
| ABM-IMT-7173 | ABM-IMT-7223 | SK 50 / ER 40 x 160 | 63 | 69.84 | 160 | 145.5 | 48.5 | M 24 | M 12 |
| ABM-IMT-7174 | ABM-IMT-7224 | SK 50 / ER 50 x 100 | 78 | 69.84 | 100 | 79.3 | 49.5 | M 24 | M 12 |
