Description

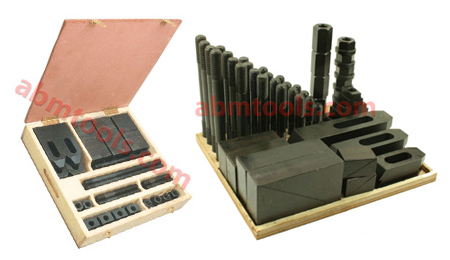

• Available with Wooden Box and Metal Box.

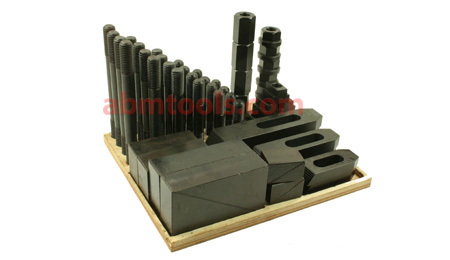

• Set of 34 Pcs. in Wooden Box.

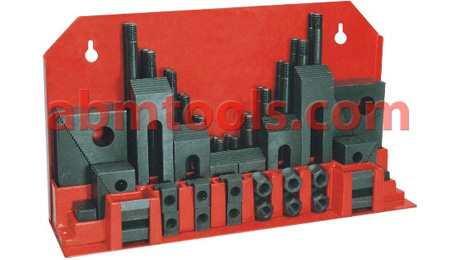

• Set of 58 Pcs. in Metal Box.
| Item Code No. 34 Pcs Set | Item Code No. 58 Pcs Set | Size |
|---|---|---|
| ABM-VC-11580 | ABM-VC-11576 | 14 - 12 mm |
| ABM-VC-11581 | ABM-VC-11577 | 16 - 12 mm |
| ABM-VC-11582 | ABM-VC-11578 | 18 - 12 mm |
| ABM-VC-11583 | ABM-VC-11579 | 18 - 16 mm |
34 Pcs. Clamping Kit Contains Following
| Item Code No. | T-Slot Nuts 4 Pcs | Clamping Stud 4 Pcs. Each | Flanged Nuts 4 Pcs. | Coupling Nuts 2 Pcs. | Strap Clamp 2 Pcs. | Height Plates Adjustments 2 Pcs. |
|---|---|---|---|---|---|---|
| ABM-VC-11580 | 14-12 MM | M12 x80 M12x100 M12x160 M12x200 | M12 | M12 | 12x100 | 2-50 2-100 |
| ABM-VC-11581 | 16-12 MM | M12 x80 M12x100 M12x160 M12x200 | M12 | M12 | 12x125 | 2-50 2-100 |
| ABM-VC-11582 | 18-12 MM | M12 x80 M12x100 M12x160 M12x200 | M12 | M12 | 16x125 | 2-50 2-100 |
| ABM-VC-11583 | 18-16MM | M16 x80 M16x100 M16x160 M16x200 | M16 | M16 | 16x160 | 2-50 2-100 |
58 Pcs. Clamping Kit Contains Following
| Item Code No. | T-Slot Nuts 6 Pcs | Clamping Stud 4 Pcs. Each | Flanged Nuts 6 Pcs. | Coupling Nuts 4 Pcs. | Stepped Strap Clamp 2 Pcs. Each | Step Blocks 2 Pairs (4 Pcs.) Each |
|---|---|---|---|---|---|---|
| ABM-VC-11576 | 14-12 MM | M12x63 M12x80 M12x100 M12x125 M12x160 M12x200 | M12 | M12 | 12x80 12x100 12x125 | 1 2 Pairs 2 2 Pairs 3 2 Pairs |
| ABM-VC-11577 | 16-12 MM | M12x63 M12x80 M12x100 M12x125 M12x160 M12x200 | M12 | M12 | 12x80 12x100 12x125 | 1 2 Pairs 2 2 Pairs 3 2 Pairs |
| ABM-VC-11578 | 18-12 MM | M12x63 M12x80 M12x100 M12x125 M12x160 M12x200 | M12 | M12 | 12x80 12x100 12x125 | 1 2 Pairs 2 2 Pairs 3 2 Pairs |
| ABM-VC-11579 | 18-16MM | M16x63 M16x80 M16x100 M16x125 M16x160 M16x200 | M16 | M16 | 3 Pcs Each 16x125 16x150 | 1 2 Pairs 2 2 Pairs 3 2 Pairs |
