Description

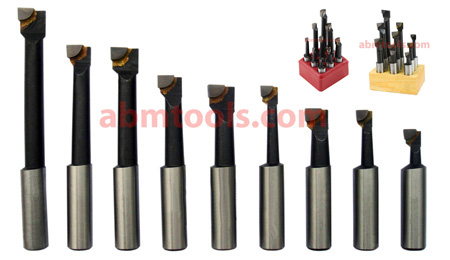

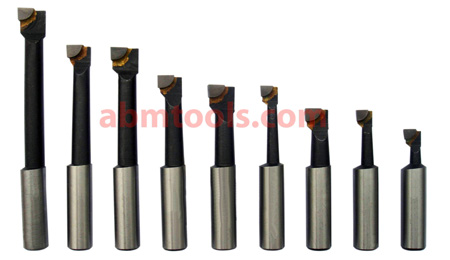

• Boring tool is used for enlarging the drilling hole.
• Boring bar is used in metalworking and woodworking.
• It is used to achieve greater accuracy of the diameter of a hole, and can be used to cut a tapered hole.
• With carbide tips.
• These tools allow both side and face cutting.
• Featuring ground shanks.
• Extremely hard wearing tools.
| C-2 Carbide-Cast Iron Item Code No. | C-6 Carbide-Steel Item Code No. | Shank Dia. | Length | Bore Depth | Min Bore |
|---|---|---|---|---|---|
| ABM-CT-12200 | ABM-CT-12270 | 3/8” | 2” | 3/4” | 5/16” |
| ABM-CT-12201 | ABM-CT-12271 | 3/8” | 2-3/8” | 1-1/8” | 5/16” |
| ABM-CT-12202 | ABM-CT-12272 | 3/8” | 2-3/4” | 1-1/2” | 5/16” |
| ABM-CT-12203 | ABM-CT-12273 | 3/8” | 2-3/16” | 15/16” | 3/8” |
| ABM-CT-12204 | ABM-CT-12274 | 3/8” | 2-21/32” | 1-13/32” | 3/8” |
| ABM-CT-12205 | ABM-CT-12275 | 3/8” | 3-1/8” | 1-7/8” | 3/8” |
| ABM-CT-12206 | ABM-CT-12276 | 3/8” | 2-3/8” | 1-1/8” | 7/16” |
| ABM-CT-12207 | ABM-CT-12277 | 3/8” | 2-15/16” | 1-11/16” | 7/16” |
| ABM-CT-12208 | ABM-CT-12278 | 3/8” | 3-1/2” | 2-1/4” | 7/16” |
| ABM-CT-12209 | ABM-CT-12279 | 1/2” | 2-1/4” | 3/4” | 5/16” |
| ABM-CT-12210 | ABM-CT-12280 | 1/2” | 2-5/8” | 1-1/8” | 5/16” |
| ABM-CT-12211 | ABM-CT-12281 | 1/2” | 3” | 1-1/2” | 5/16” |
| ABM-CT-12212 | ABM-CT-12282 | 1/2” | 2-5/8” | 1-1/8” | 7/16” |
| ABM-CT-12213 | ABM-CT-12283 | 1/2” | 3-3/16” | 1-11/16” | 7/16” |
| ABM-CT-12214 | ABM-CT-12284 | 1/2” | 3-3/4” | 2-1/4” | 7/16” |
| ABM-CT-12215 | ABM-CT-12285 | 1/2” | 3” | 1-1/2” | 9/16” |
| ABM-CT-12216 | ABM-CT-12286 | 1/2” | 3-3/4” | 2-1/4” | 9/16” |
| ABM-CT-12217 | ABM-CT-12287 | 1/2” | 4-1/2” | 3” | 9/16” |
| ABM-CT-12218 | ABM-CT-12288 | 5/8” | 2-1/4” | 3/4” | 5/16” |
| ABM-CT-12219 | ABM-CT-12289 | 5/8” | 2-5/8” | 1-1/8” | 5/16” |
| ABM-CT-12220 | ABM-CT-12290 | 5/8” | 3” | 1-1/2” | 5/16” |
| ABM-CT-12221 | ABM-CT-12291 | 5/8” | 2-5/8” | 1-1/8” | 7/16” |
| ABM-CT-12222 | ABM-CT-12292 | 5/8” | 3-3/16” | 1-11/16” | 7/16” |
| ABM-CT-12223 | ABM-CT-12293 | 5/8” | 3-3/4” | 2-1/4” | 7/16” |
| ABM-CT-12224 | ABM-CT-12294 | 5/8” | 3” | 1-1/2” | 9/16” |
| ABM-CT-12225 | ABM-CT-12295 | 5/8” | 2-3/4” | 2-1/4” | 9/16” |
| ABM-CT-12226 | ABM-CT-12296 | 5/8” | 4-1/2” | 3” | 9/16” |
| ABM-CT-12227 | ABM-CT-12297 | 5/8” | 3-3/8” | 1-7/8” | 11/16” |
| ABM-CT-12228 | ABM-CT-12298 | 5/8” | 4-5/16” | 2-13/16” | 11/16” |
| ABM-CT-12229 | ABM-CT-12299 | 5/8” | 5-1/4” | 3-3/4” | 11/16” |
| ABM-CT-12230 | ABM-CT-12300 | 3/4” | 3-1/8” | 1-1/8” | 7/16” |
| ABM-CT-12231 | ABM-CT-12301 | 3/4” | 3-11/16” | 1-11/16” | 7/16” |
| ABM-CT-12232 | ABM-CT-12302 | 3/4” | 4-1/4” | 2-1/4” | 7/16” |
| ABM-CT-12233 | ABM-CT-12303 | 3/4” | 3-1/2” | 1-1/2” | 9/16” |
| ABM-CT-12234 | ABM-CT-12304 | 3/4” | 4-1/4” | 2-1/4” | 9/16” |
| ABM-CT-12235 | ABM-CT-12305 | 3/4” | 5” | 3” | 9/16” |
| ABM-CT-12236 | ABM-CT-12306 | 3/4” | 3-11/16” | 1-11/16” | 11/16” |
| ABM-CT-12237 | ABM-CT-12307 | 3/4” | 4-13/16” | 2-13/16” | 11/16” |
| ABM-CT-12238 | ABM-CT-12308 | 3/4” | 5-1/4” | 3-3/4” | 11/16” |
| ABM-CT-12239 | ABM-CT-12309 | 3/4” | 4-1/4” | 2-1/4” | 13/16” |
| ABM-CT-12240 | ABM-CT-12310 | 3/4” | 5-3/8” | 3-3/8” | 13/16” |
| ABM-CT-12241 | ABM-CT-12311 | 3/4” | 6-1/2” | 4-1/2” | 13/16” |
| ABM-CT-12242 | ABM-CT-12312 | 1” | 5” | 3” | 13/16” |
| ABM-CT-12243 | ABM-CT-12313 | 1” | 5-3/4” | 3-3/4” | 1-1/16” |
| ABM-CT-12244 | ABM-CT-12314 | 1” | 6-1/2” | 4-1/2” | 1-7/8” |
| ABM-CT-12245 | ABM-CT-12315 | 1” | 6-1/2” | 4-1/2” | 1-1/16” |
| ABM-CT-12246 | ABM-CT-12316 | 1” | 7-3/4” | 5-3/4” | 1-1/2” |
| ABM-CT-12247 | ABM-CT-12317 | 1” | 8-1/4” | 6-1/4” | 1-1/16” |
| ABM-CT-12248 | ABM-CT-12318 | 1” | 9-1/2” | 6-3/4” | 1-1/2” |

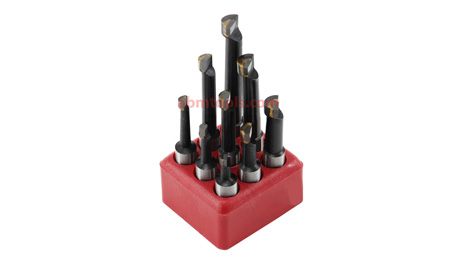

| ABM-CT-12249 | ABM-CT-12319 | Size 5/16" (8mm) - Set of 9 Pcs. | |||
| ABM-CT-12250 | ABM-CT-12320 | Size 3/8" (10mm) - Set of 9 Pcs. | |||
| ABM-CT-12251 | ABM-CT-12321 | Size 1/2" (12mm) - Set of 9 Pcs. | |||
| ABM-CT-12252 | ABM-CT-12322 | Size 3/4" (20mm) - Set of 12 Pcs. | |||
