Description

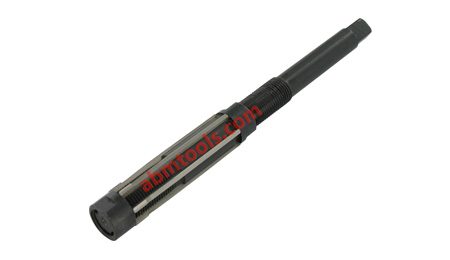

• An adjustable hand reamer is a tool used to smooth the bore walls of a drilled hole when precise sizing is necessary.
• The blades of an adjustable reamer are separate from the body and are fitted into ramped grooves in the body.
• As the blade slides along the groove the cutting diameter is changed.
• While, Captive nuts located at each end of the blades lock them in a fixed position.
• The cutting diameter can be adjusted by loosening one nut while tightening the other.
• One reamer does the work of many.
• Each reamer can expands from smallest size to next large size by loosening one adjusting nut and tightening the other.
• Available in Inches and mm Sizes.
• Available in Blades made of Carbon Steel and High Speed Steel (HSS) Material.
• SETS Packed in attractive Wooden Box Packing.
• Spare blades Carbon Steel and High Speed Steel (HSS) also available.
• The most economical tool for precisely reaming a small number of odd-sized holes.
• Adjustable to precisely fit a range of sizes, eliminating the need for single purpose, special diameter reamers.
• Worn blades can be easily replaced by the user.
| Item Code No. | American Size | Industrial Code | Range Inches | Range MM | No. of Blades |
|---|---|---|---|---|---|
| ABM-CT-13180 | 8/A | HV | 1/4 to 9/32 | 6.35 to 7.14 | 4 |
| ABM-CT-13181 | 7/A | HW | 9/32 to 5/16 | 7.14 to 7.94 | 4 |
| ABM-CT-13182 | 6/A | HZ | 5/16 to 11/32 | 7.94 to 8.73 | 4 |
| ABM-CT-13183 | 5/A | HY | 11/32 to 3/8 | 8.73 to 9.52 | 5 |
| ABM-CT-13184 | 4/A | H-1 | 3/8 to 13/32 | 9.52 to 10.32 | 6 |
| ABM-CT-13185 | 3/A | H-2 | 13/32 to 7/16 | 10.32 to 11.11 | 6 |
| ABM-CT-13186 | 2/A | H-3 | 7/16 to 15/32 | 11.11 to 11.91 | 6 |
| ABM-CT-13187 | A | H-4 | 15/32 to 17/32 | 11.91 to 13.49 | 6 |
| ABM-CT-13188 | B | H-5 | 17/32 to 19/32 | 13.49 to 15.08 | 6 |
| ABM-CT-13189 | C | H-6 | 19/32 to 21/32 | 15.08 to 16.67 | 6 |
| ABM-CT-13190 | D | H-7 | 21/32 to 23/32 | 16.67 to 18.26 | 6 |
| ABM-CT-13191 | E | H-8 | 23/32 to 25/32 | 18.26 to 19.84 | 6 |
| ABM-CT-13192 | F | H-9 | 25/32 to 27/32 | 19.84 to 21.43 | 6 |
| ABM-CT-13193 | G | H-10 | 27/32 to 15/16 | 21.43 to 23.81 | 6 |
| ABM-CT-13194 | H | H-11 | 15/16 to 1-1/16 | 23.81 to 26.99 | 6 |
| ABM-CT-13195 | I | H-12 | 1-1/16 to 1-3/16 | 26.99 to 30.16 | 6 |
| ABM-CT-13196 | J | H-13 | 1-3/16 to 1-11/32 | 30.16 to 34.13 | 6 |
| ABM-CT-13197 | K | H-14 | 1-11/32 to 1-1/2 | 34.13 to 38.10 | 6 |
| ABM-CT-13198 | L | H-15 | 1-1/2 to 1-13/16 | 38.10 to 46.04 | 6 |
| ABM-CT-13199 | M | H-16 | 1-13/16 to 2-7/32 | 46.04 to 56.36 | 6 |
| ABM-CT-13200 | N | H-17 | 2-7/32 to 2-3/4 | 56.36 to 69.85 | 6 |
| ABM-CT-13201 | O | H-18 | 2-3/4 to 3-11/32 | 69.85 to 84.93 | 6 |
| ABM-CT-13202 | P | H-19 | 3-11/32 to 4 | 84.93 to 100 | 6 |
| ABM-CT-13203 | Q | H-20 | 4 to 4-3/4 | 100 to 120 | 6 |
| ABM-CT-13204 | R | H-21 | 4-3/4 to 5-1/2 | 120 to 140 | 6 |
| While placing order please mention Carbon Steel or HSS Blades | |||||
SETS (Packed in attractive Wooden Box Packing)
| Item Code No. | Sets |
|---|---|
| ABM-CT-13208 | Set of 7 Reamers - Size 8/A to 2/A ( HV to H-3 ) |
| ABM-CT-13209 | Set of 8 Reamers - Size A to H ( H-4 to H-11 ) |
| ABM-CT-13210 | Set of 11 Reamers - A to K ( H-4 to H-14 ) |
| ABM-CT-13211 | Set of 9 Reamers - A to I ( H-4 to H-12 ) |
| ABM-CT-13212 | Set of 5 Reamers - I to M ( H-12 to H-16 ) |
| While placing order please mention Carbon Steel or HSS Blades | |
| Sets can be made as per customer requirements | |
